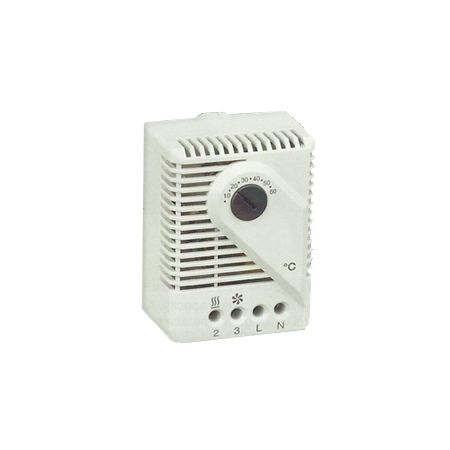

Switch Temperature Difference: 4K (± 1.5K tolerance)
Sensor Element: Thermostatic bimetal
Contact Type: Snap-action contact
Contact Resistance: <10m Ω
Service Life: >100,000 cycles
Max. Switching Capacity: 250 VAC, 10 (4) A / 120 VAC, 10(4) A / DC 30W
EMC: Acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection: 4 2.5mm2 4-Pole terminal, clamping torque 0.5 Nm max. rigid wire 2.5mm2 stranded wire (with wire end ferrule) 1.5mm2
Mounting: 35mm DIN clip for 35mm DIN rail, EN60715 or for exit filter EF118 Series
Casing: UL94, plastic according to UL94 V-0, light grey
Dimensions: 67 x 50 x 38mm
Weight: Approx. 0.10Kg
Fitting Position: Variable
Operating/Storage Temperature: -20 to + 80 °C (-4 to + 176 °F) / -45 to + 80 °C (-49 to + 176 °F)
Protection Type: IP20
| Art. No. | Operating Voltage | Setting Range |
| 01170.0-00 | 230VAC | +5 to +60°C |
| 01170.0-01 | 230VAC | +40 to +140°F |
| 01170.0-02 | 230VAC | -20 to +30°C |
| 01170.9-00 | 120VAC | +40 to +140°F |
| 01170.9-01 | 120VAC | +5 to +60°F |
