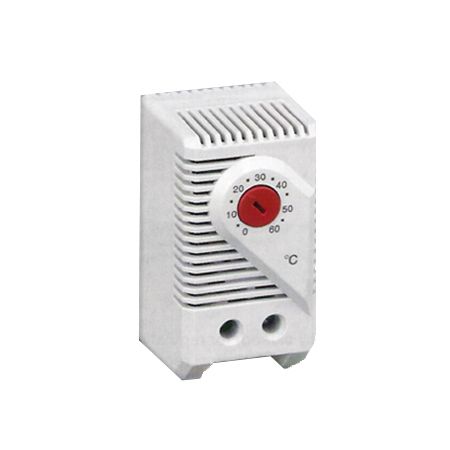

DMO 1140
Switch temperature difference:
7K (4K tolerende)
Sensor element:
Thermostatic bimetal
Contact type:
Snap-action contact
Contact resistance:
<10m Ω
Service life:
<100,000 cycles
Max. Switching capacity:
250 VAC, 10 (2) A - 120 VAC, 15 (2) - DC 30W
EMC:
acc, to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection:
2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm
2
stranded wire (with wire end ferrure) 1.5mm
2
Mounting:
35mm DIN clip for 35mm DIN rail,EN60715 or for exit filter EF 118 Series
Casing:
Plastic according to UL94 V-0, light grey
Dimensions:
60x33x43mm
Weight:
approx. 40g
Fitting position:
Variable
Operating/Storage Temperature:
-20 to +80°C (-4 to +176°F)
Protection Type:
IP20
DMO 1140
DMO 1140- TEKNİK BİLGİLER
