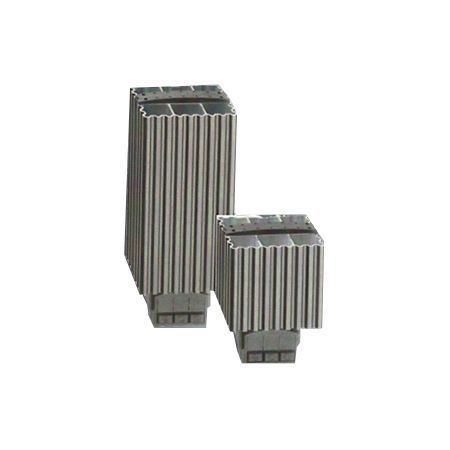

Yarı İletken Termostat HG140

Operating voltage : 120-240V AC/DC*(min. 110V max.265V)

Heating  element : PTC resistor,self regulating and temperature limiting.

Heater body : Extruded  aluminium profile,anodised

Connection : 3 pressure  clamps for stranded wire 0.5-1.5mm2 /with wire end ferrule ) and  rigid wire 0.5-1.5mm2

Connection casing : Plastic according to UL94 V-0, black

Mounting :Clıp For 35mm DIN rail,EN 60715

Fitting position: Vertical

Operating/Storage temperature : -20 °C to +70 °C (-4 °C to + 158 °F)

Protection type/ Protection class :  IP54 / I ( earthed)

Accessories : Screw fixing


Art. No.Heating capacityInrush current max.Length(L)Weight(approx.)
14000.0-0015W1.5A65mm0.30kg
14001.0-0030W3.0A65mm0.30kg
14003.0-0045W3.5A65mm0.30kg
14005.0-0060W2.5A140mm0.40kg
14006.0-0075W4.0A140mm0.50kg
14007.0-00100W4.5A140mm0.50kg
14008.0-00150W9.0A220mm0.70kg
