Nominal Data
Type: R2E133-H042-01-220
Motor: M2E72-LA
Phase: 1-
Nominal Voltage [V]: 230
Connection: Normal
Frequency [HZ]: 50/60

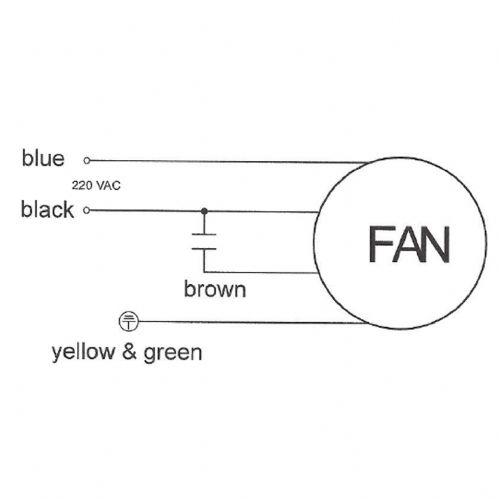

Capacitor [u F/V]: 1/400
Valid For Approval / Standard: CE
Speed [min-1]: 2750/3250
Power Input [W]: 24/27
Current Draw [A]: 0.11/0.13

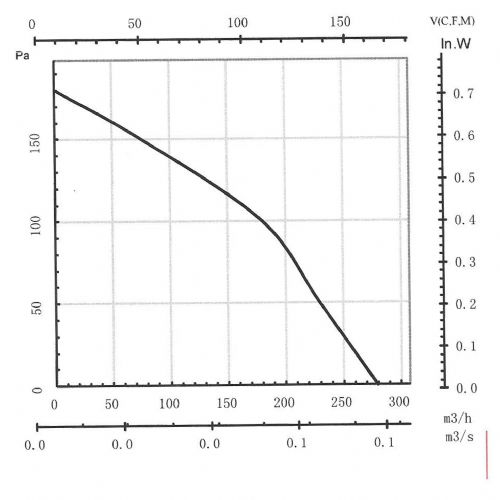

Air Flow [CFM]: 158/200
Min. Back Pressure [Pa]: 0
Max. Ambient Temperature [°C]: 50
Technical Features
Leackage Current: <=3,5 mA

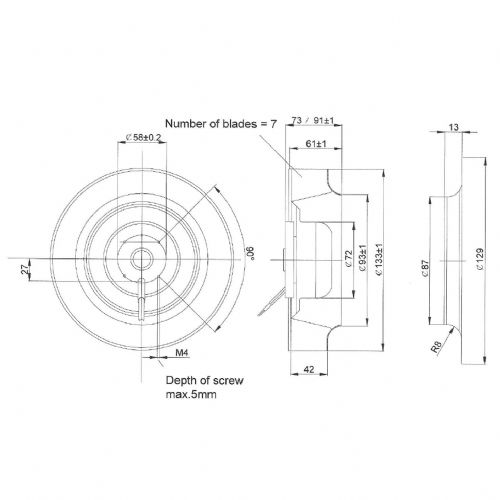

Size: 133mm
Operation Mode: S1
Direction Of Rotation: Clockwise, seen on rotor
Mounting Position: Shaft horizonal or motor on bottom; rotor on top on request
Humidity Class:
Insulation Class: "B"
Cable Exit: Lateral
Condensate Discharge Holes: Rotor-side
Bearing Motor: Ball bearing
Mass: 0.7 kg
Metarial Of Impeller: PA 6.6
Motor Pretection: Thermal overload protector (TOP) brought out
Product Conforming To Standard: CE
Surface Of Rotor: Cast in aluminum
Number Of Blades: 7
Type Of Protection: IP44
Protection Class: I
Max. Permissible Ambient Motor Temp. (Transp./Storage): +60°C
Min. Permissible Ambient Motor Temp. (Transp./Storage): -20°C
Approval: CE
