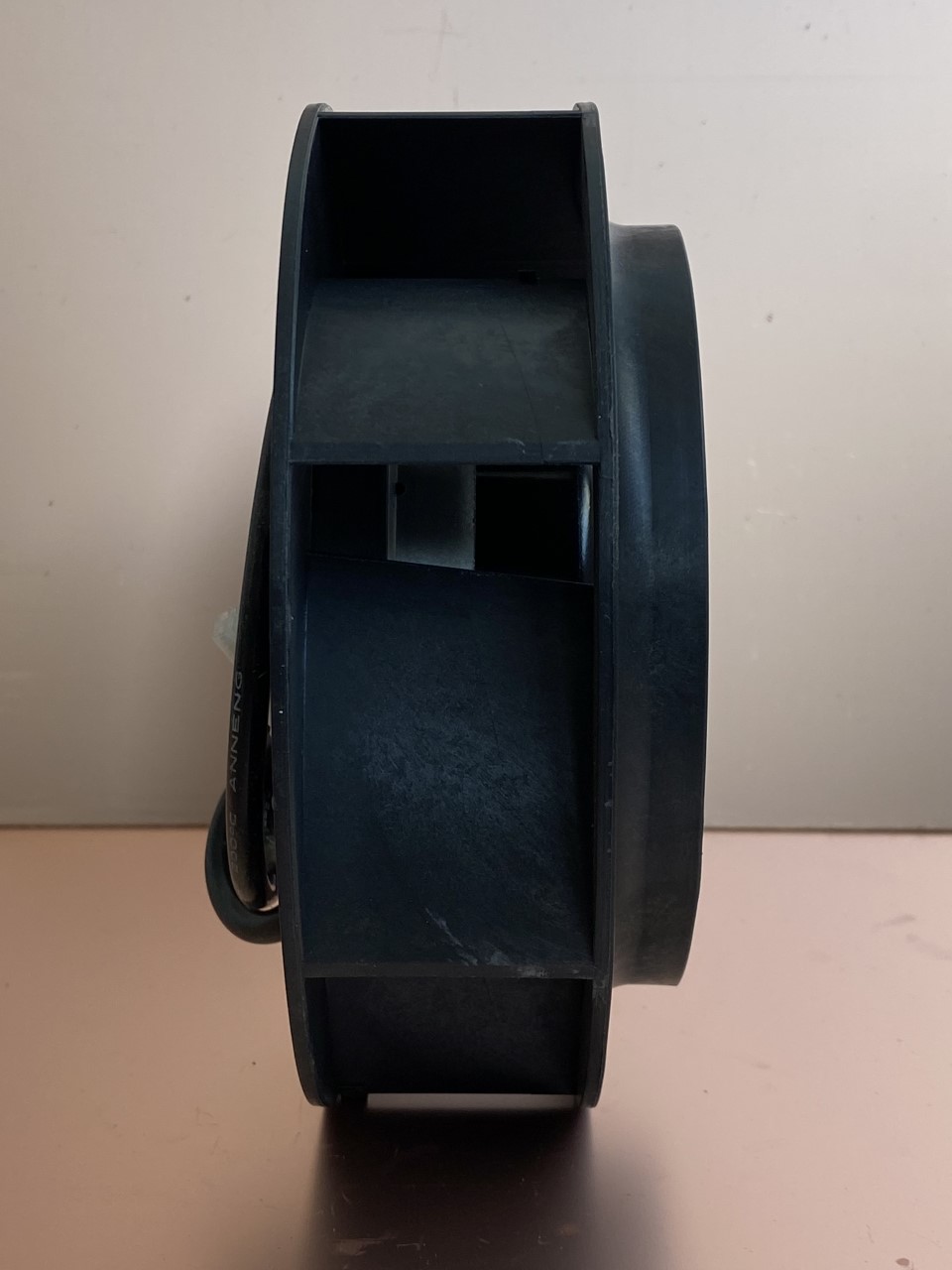

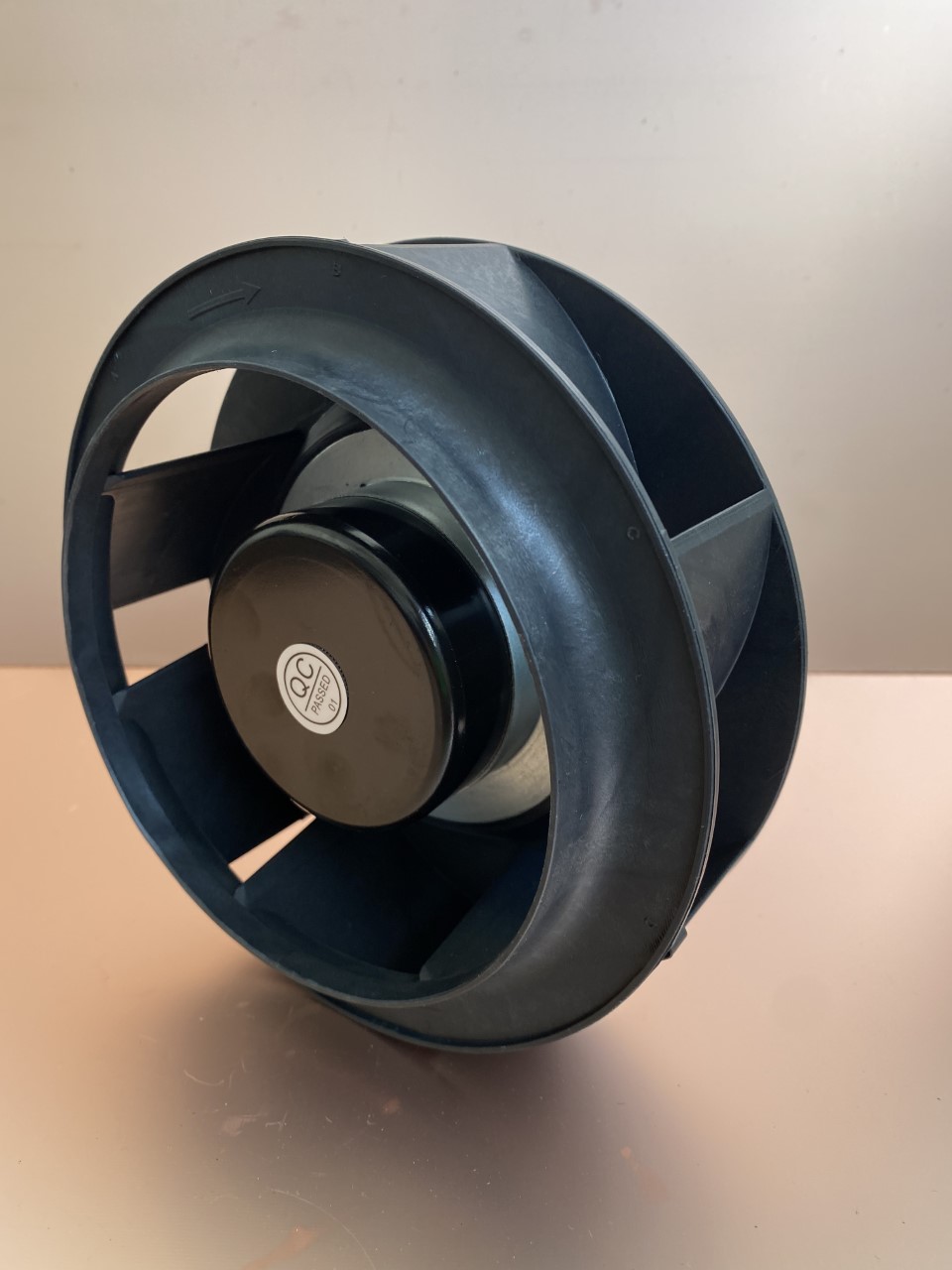

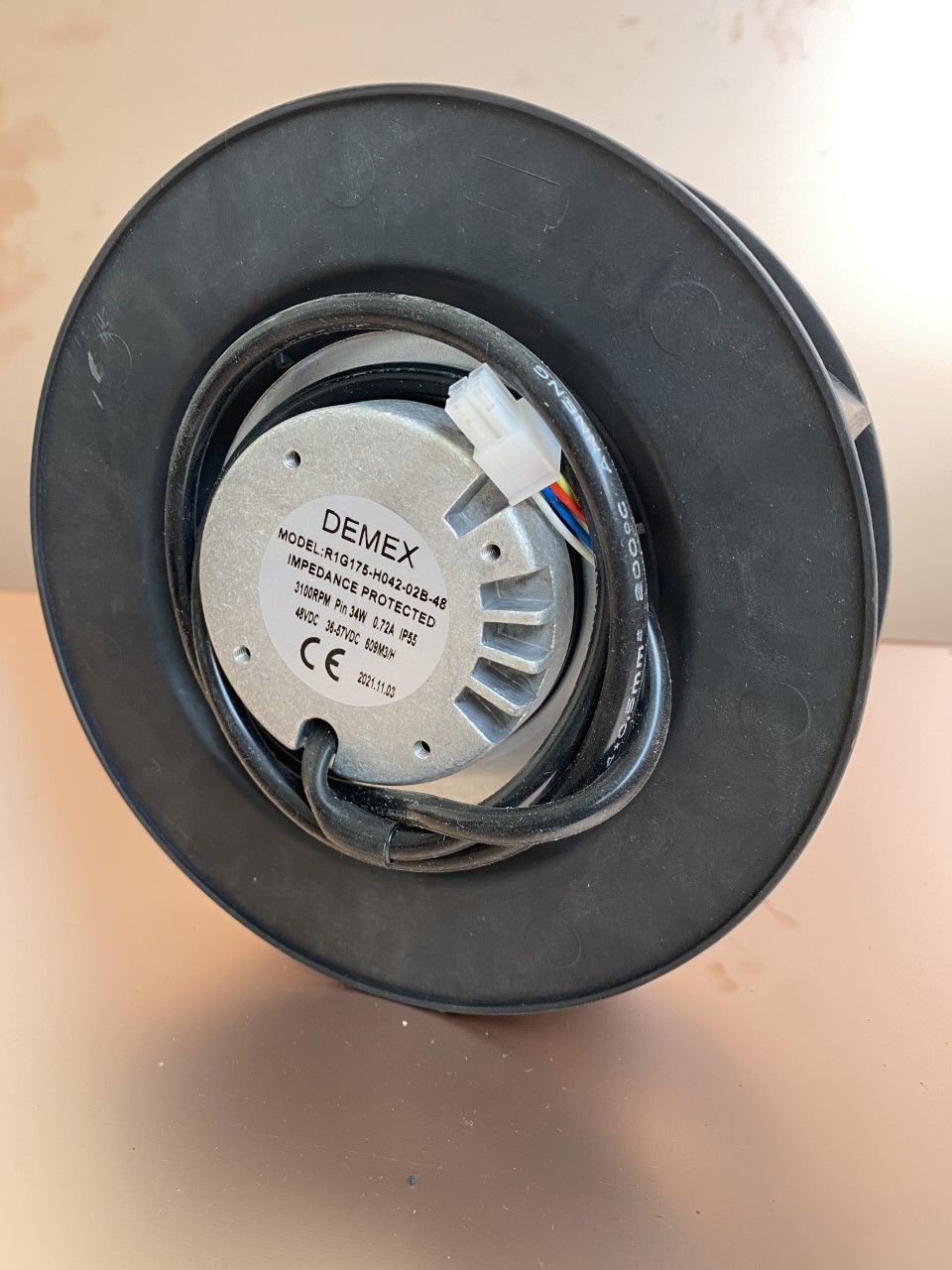

R1G175-H042-02B-48

Nominal Data





Voltage [VDC]: 48
Voltage range [VDC]: 36 .. 57
Speed [min-1]: 3100±5%
Power input [W]: 34±5%
Current draw [A]: 0.7±5%
Airflow [m3/h]: 608
Static pressure [Pa]: 398
Perm. amb. Temp. [°C]: -25~80
Max Perm. Oper. Temp. [°C]: -20~60





Parameter






Current leakage: <= 0,25 mA
Specification: 175mm*62mm
Operation mode: continuous operation S1
Direction of rotation: clockwise, seen on rotor
Mounting position: at will
Insulation class: "B"
Noise Level: 62 dB-A
Bearing: ball bearingNMB)
Net weight: 0.75 kg
Surface of rotor: electrophoresis
Operation life: >=50,000 hours
Motor protection: locked-rotor protection, over-current protection
Number of blades: 7
Type of protection: IP 55
Protection class: I
Speed control: 0-10 VDC / PWM, tach output
Approval: CE
