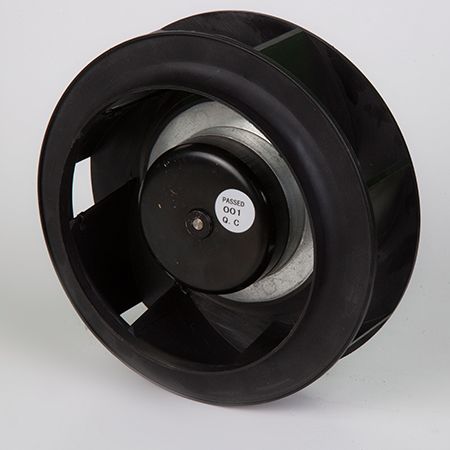

DMX-2E-175-GH

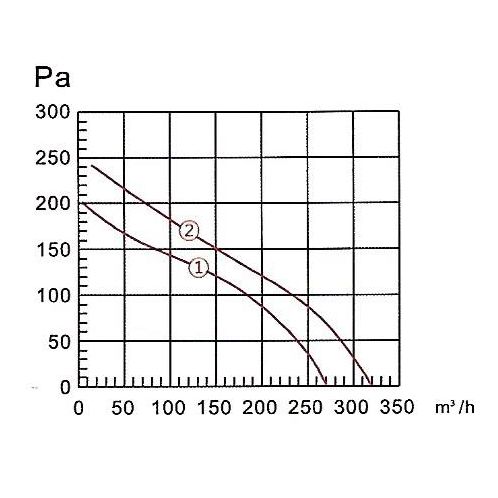

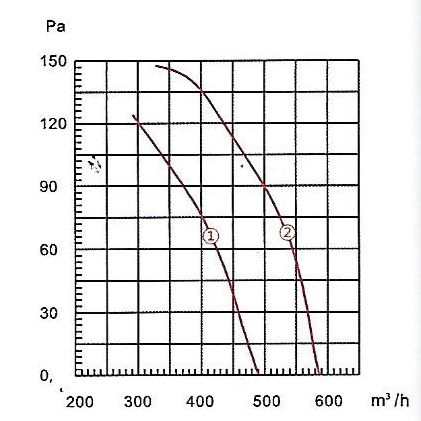

Model | Voltage (V) | Frequency (Hz) | Current (A) | İnput Power (kW) | Speed (RPM) | Max.Air Flow (m3/h) | Capacitor (u F) | Noise db(A) | Curve |
DMX-2E-175-GH | 230 | 50 | 0.26 | 50 | 2650 | 490 | 1.5 | 63 | 1 |
DMX-2E-175-GH

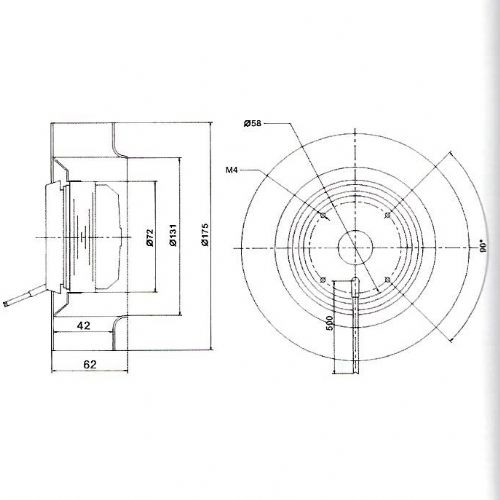

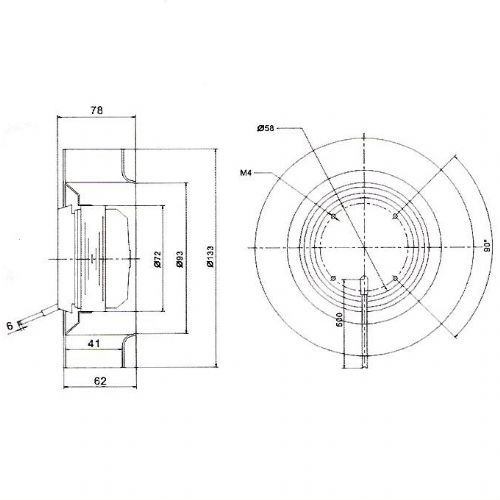

Teknik Çizim
Teknik Çizim
Teknik Çizim
Teknik Çizim
